Bakery machine

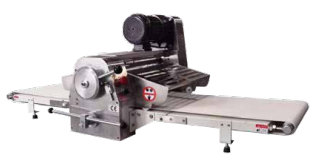

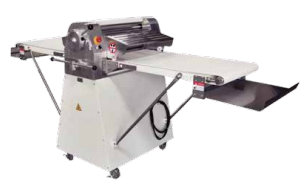

Dough sheeter
Price and lead time on request
A pastry dough sheeter with folding conveyor tables and adjustable rollers, for commercial bakeries.
Available in six sizes, from 780 × 1690 × 590 mm to 1100 × 2950 × 1180 mm.
- Size (W × D × H)
- 780 × 1,690 × 590 / 820 × 1,770 × 620 / 820 × 2,080 × 620 / 760 × 2,000 × 1,040 / 880 × 2,550 × 1,180 / 1,100 × 2,950 × 1,180 mm
- Power
- 0.4 / 0.55 / 0.55 / 0.4 / 0.55 / 0.75 kW
- Supply
- 220–240 / 380 V
Side by side with up to two more
Tell us about gas, ventilation and power on site and we will note it on the quotation.
Specification
Size & weight
- Size (W × D × H)
- 780 × 1,690 × 590 / 820 × 1,770 × 620 / 820 × 2,080 × 620 / 760 × 2,000 × 1,040 / 880 × 2,550 × 1,180 / 1,100 × 2,950 × 1,180 mm
Power & supply
- Supply
- 220–240 / 380 V
- Power
- 0.4 / 0.55 / 0.55 / 0.4 / 0.55 / 0.75 kW
Details
- Roller gap
- 1–40 mm
- Conveyor belt size
- 400 × 1600 / 430 × 1700 / 500 × 2000 / 400 × 1600 / 500 × 2000 / 630 × 2400 mm
- Weight
- 110 / 117 / 125 / 170 / 190 / 225 kg
